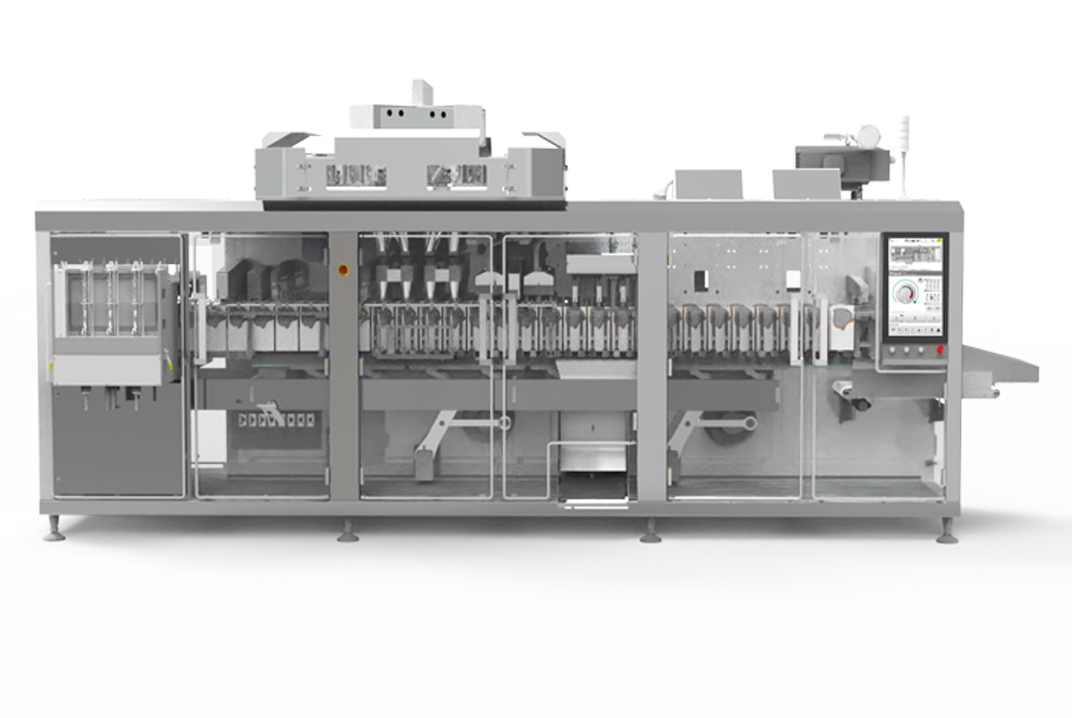

Flexible Packaging Machine
-

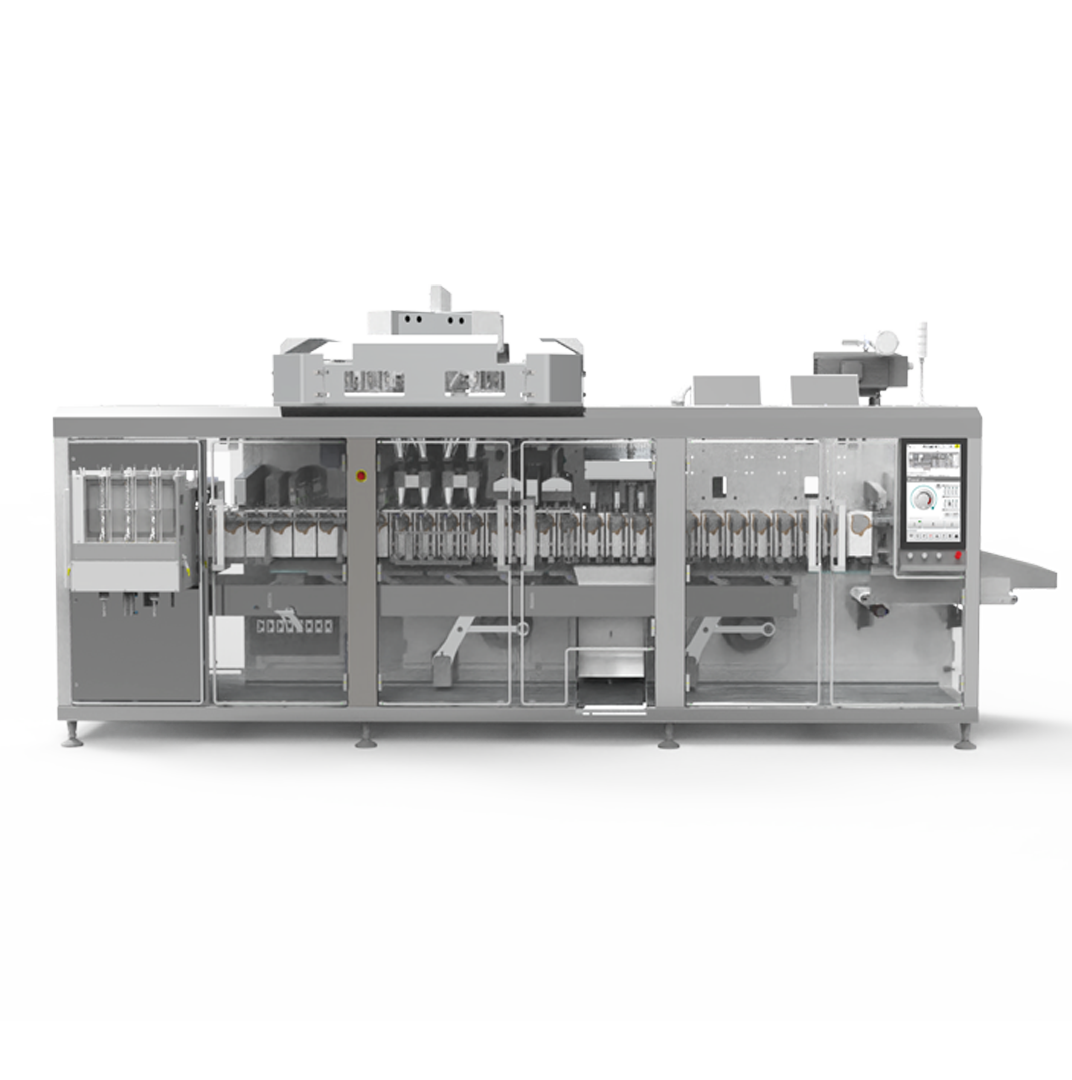

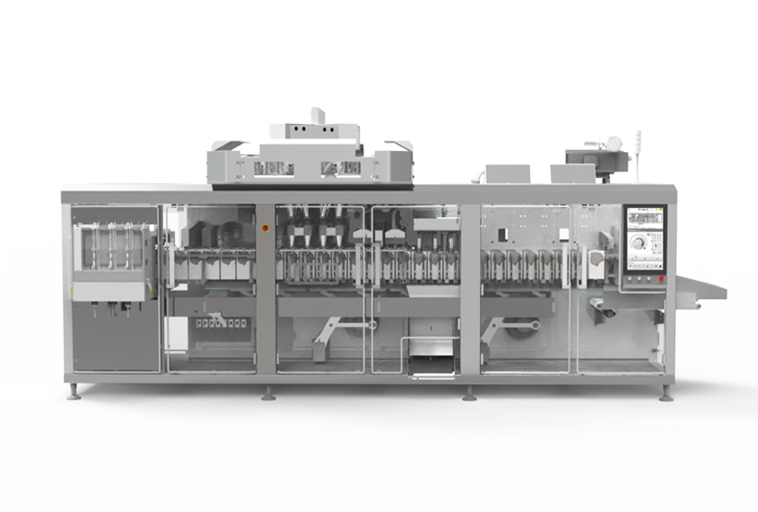

ML-120-I8
A versatile productivity booster for multi-product lines
- ML-120-I8 centers on an innovative dual-lane workstation layout, achieving high-speed bag forming in a compact footprint. Compatible with multiple specifications and bag types, it supports rapid product changeover and flexible manufacturing, helping enterprises maximize production efficiency and meet evolving market demands.
-
Characteristics
- Production Efficiency
Innovative layout unlocks higher output
Dual-lane workstation operation achieves higher unit output in limited space. High-speed and stable production allows companies to meet growing orders with confidence and continuously improve overall production line efficiency.
-
-
- Quick Changeover
Rapid changeover for diverse orders
Equipped with a changeover management system, it quickly guides part replacement and parameter adjustment, significantly reducing downtime. Efficient operation is maintained regardless of small batches, multiple specifications, or frequent production switches.
-
-
- Flexible Production
One machine adapts to multiple bag types

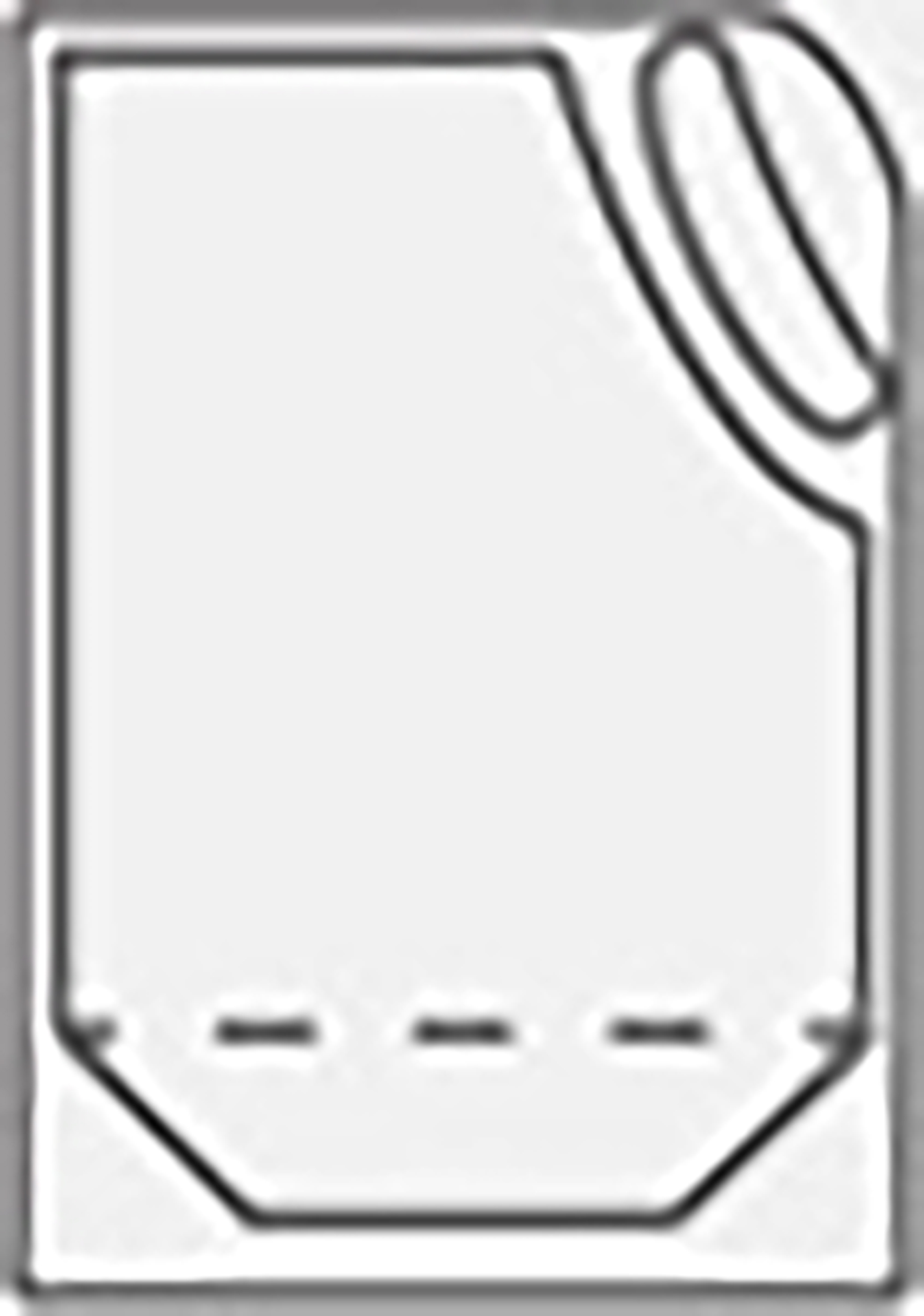

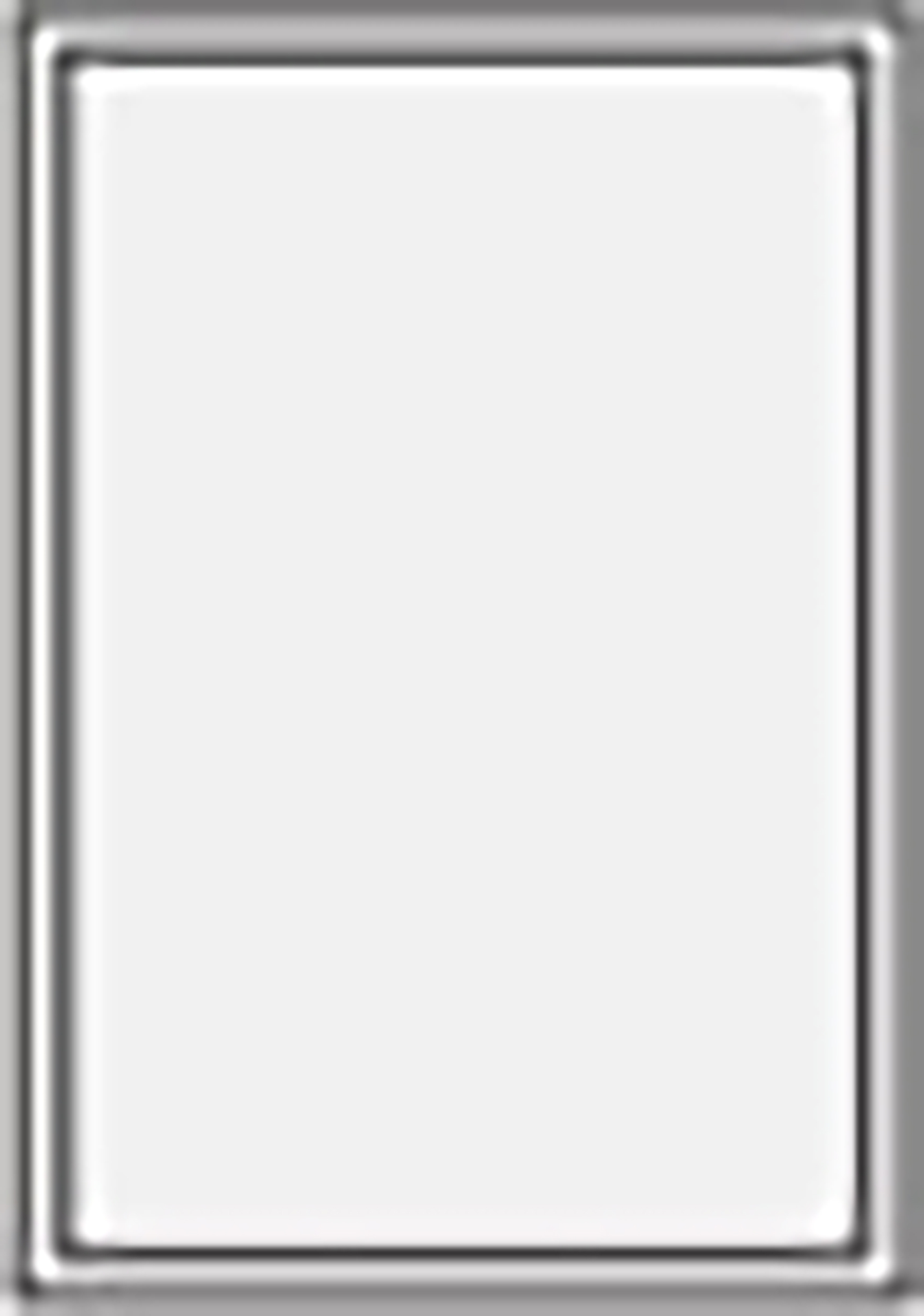

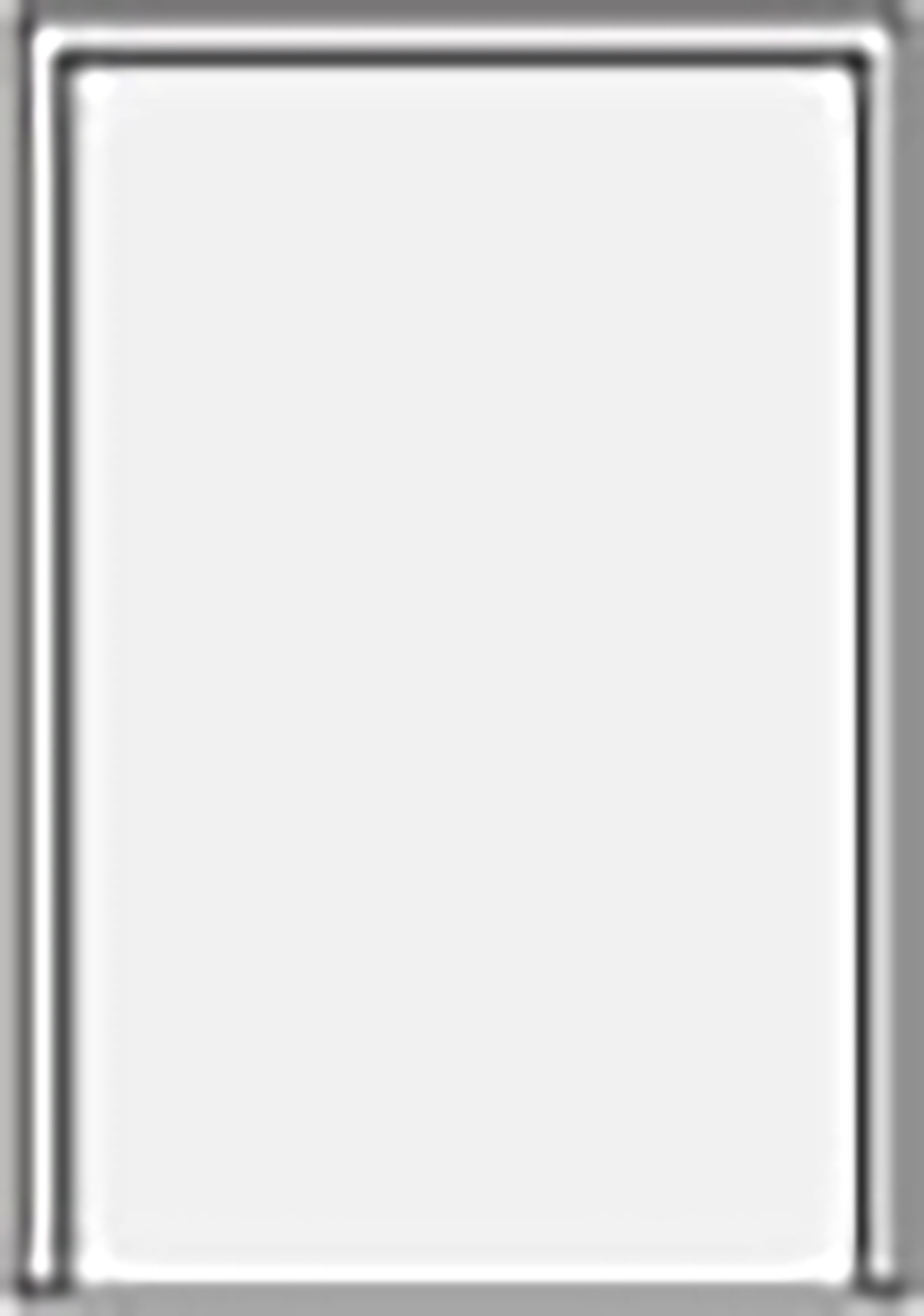

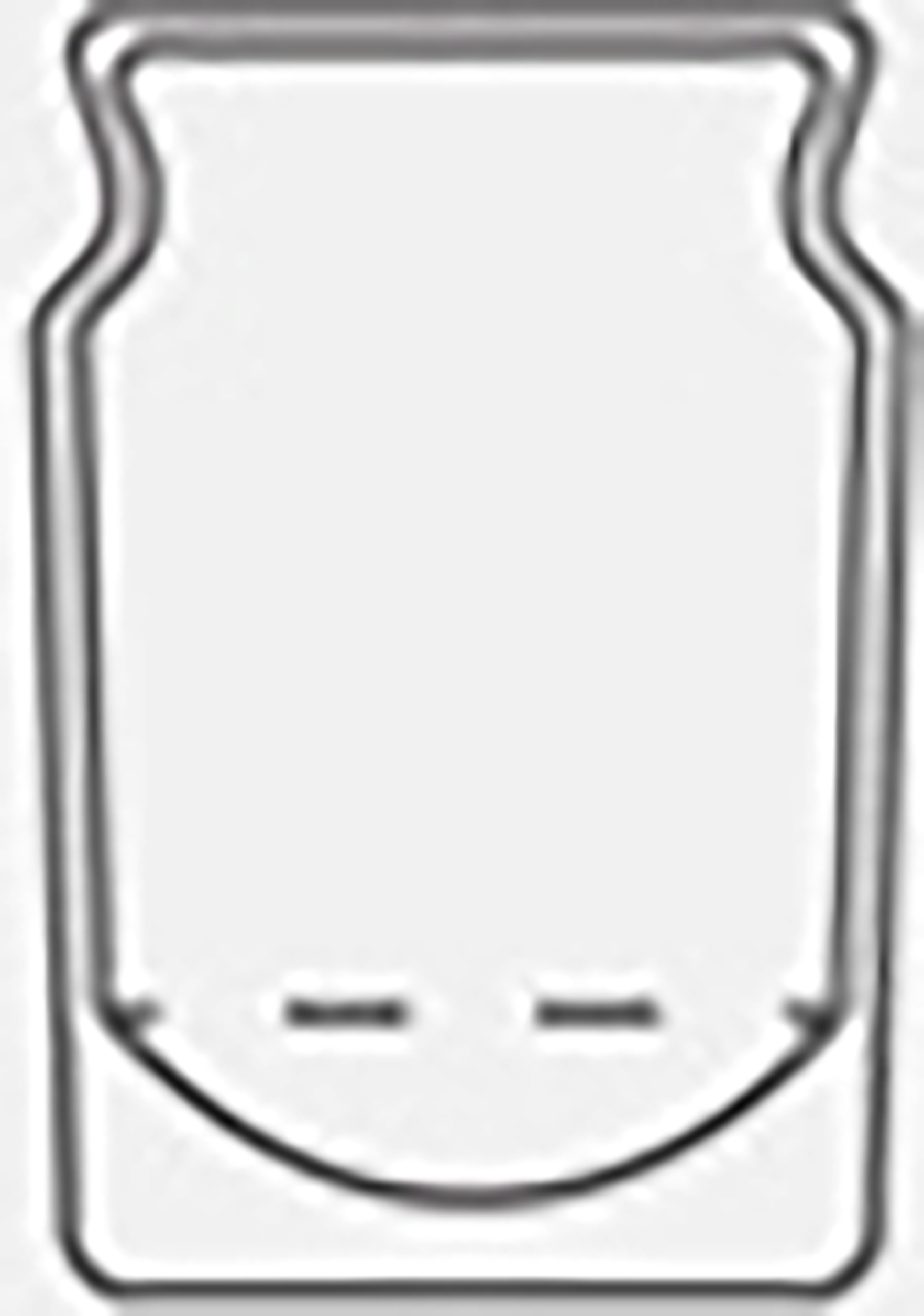

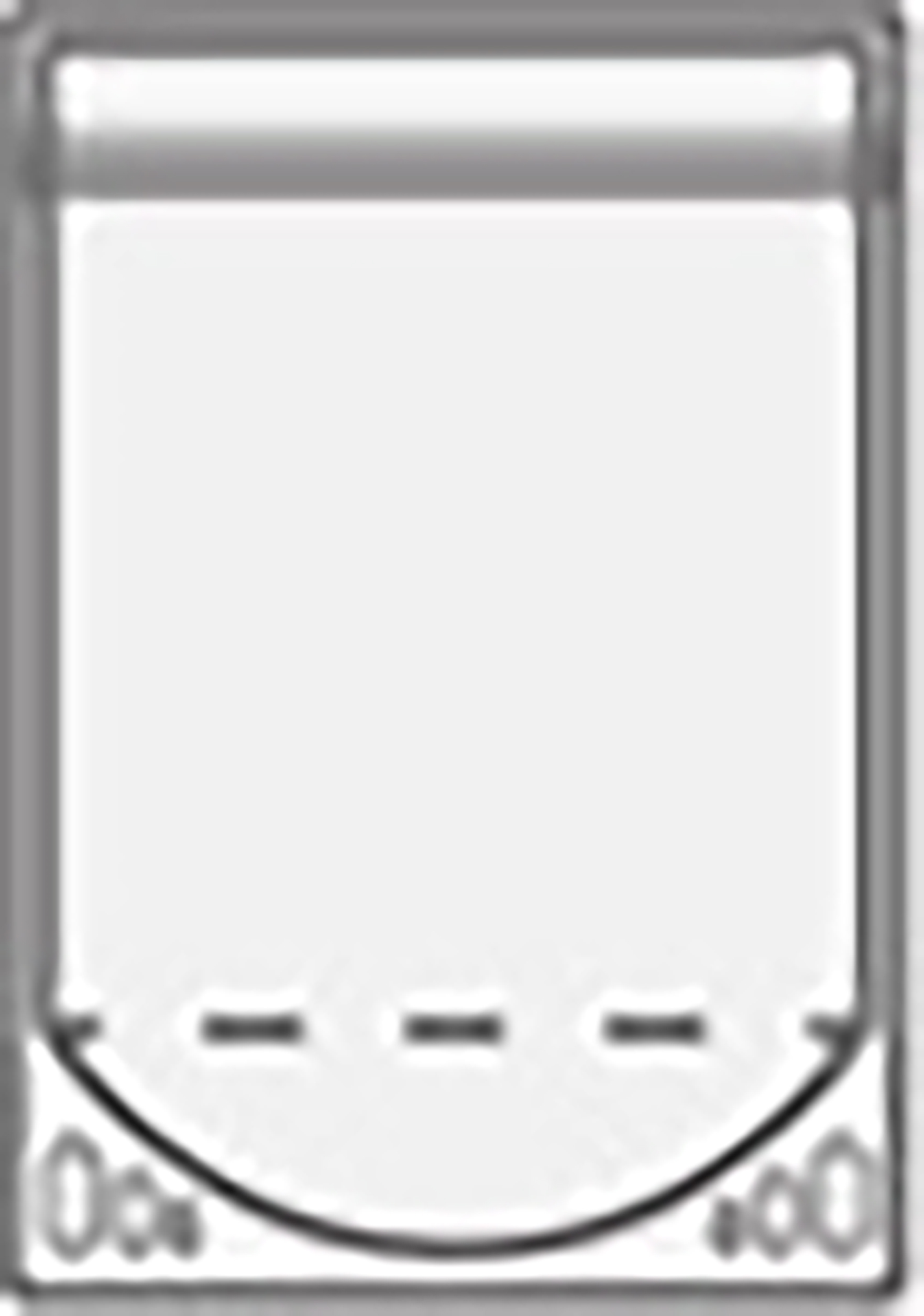

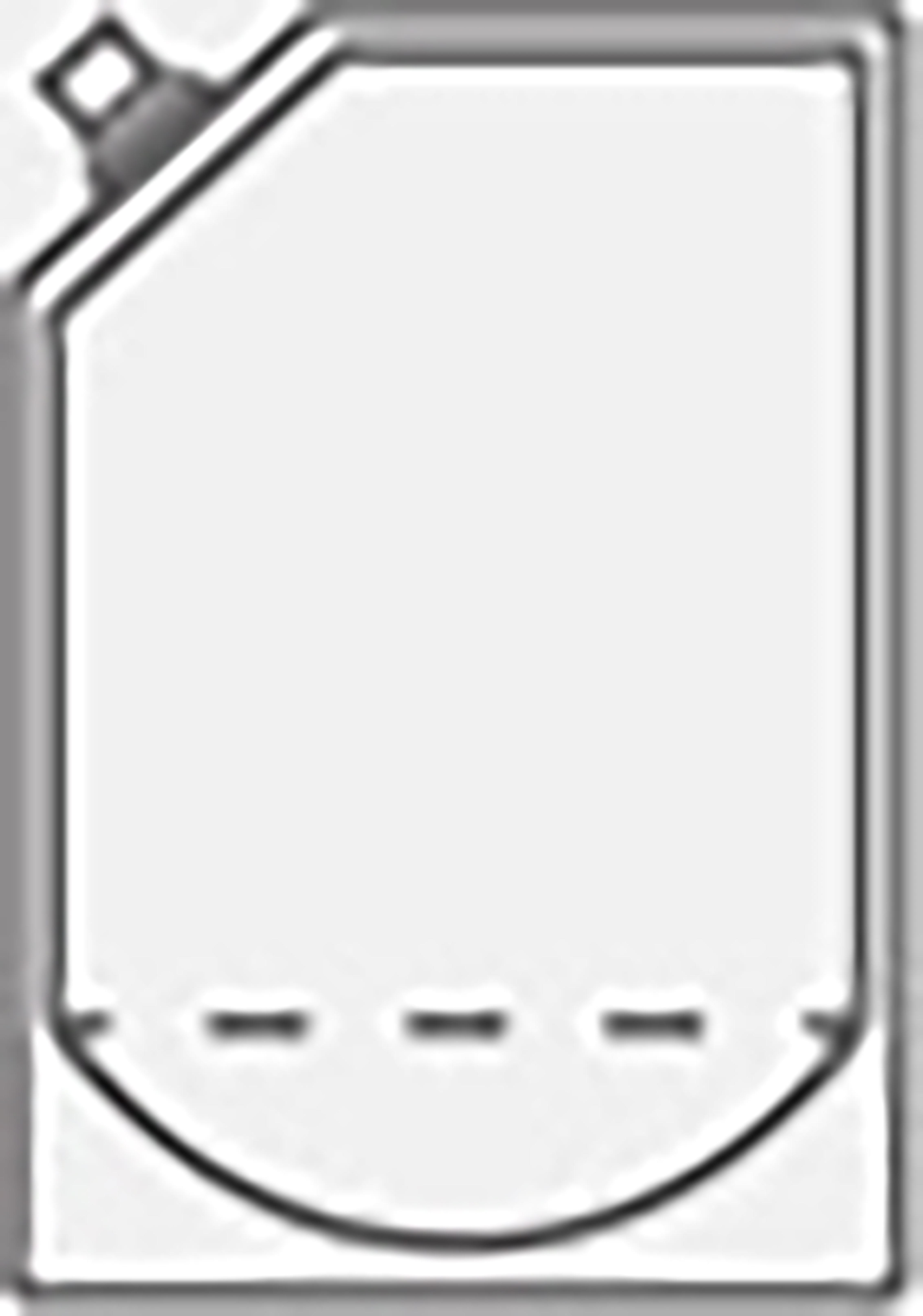

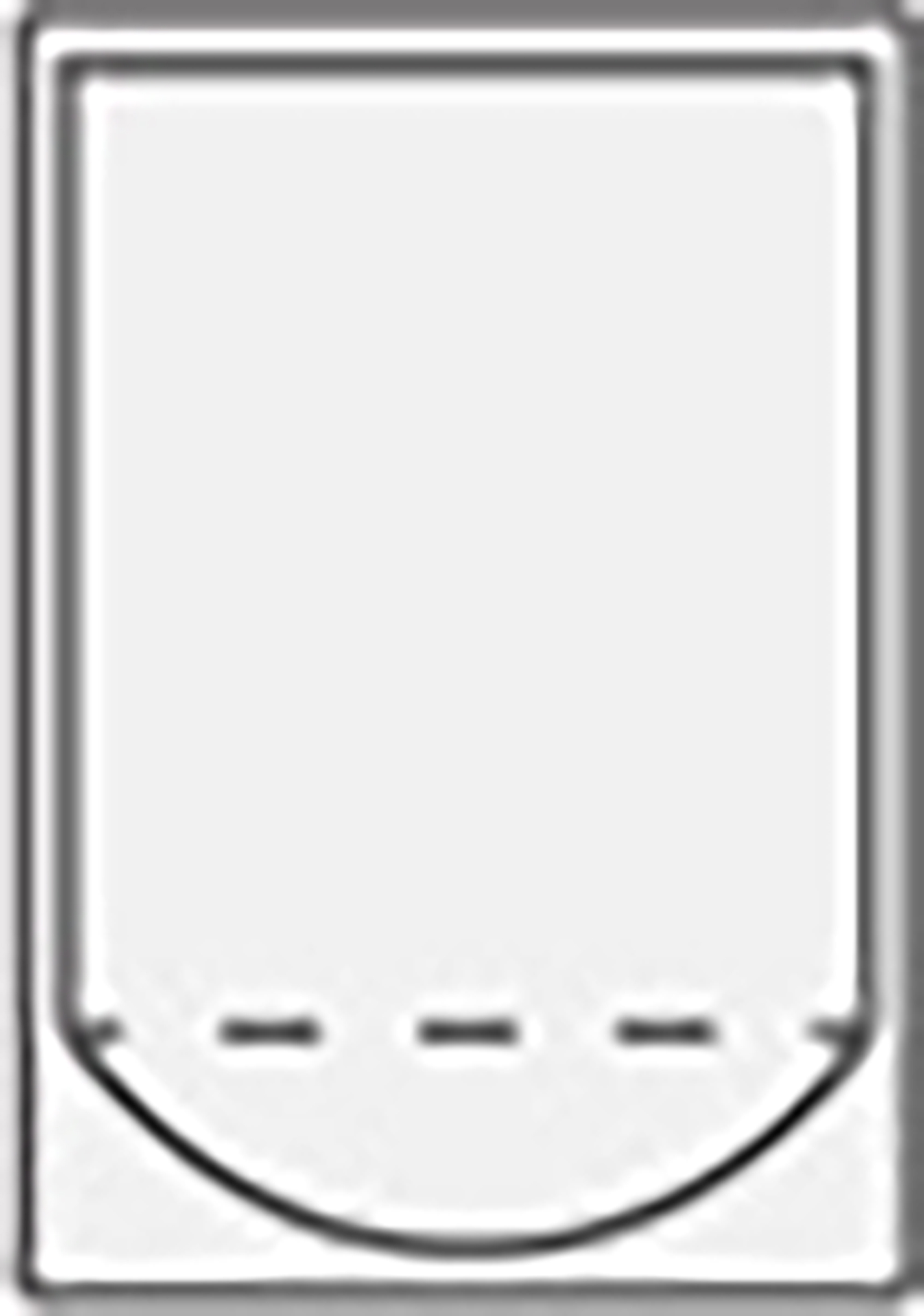

Unique bag storage design supports various specifications and irregular bag shapes. Products can be switched quickly without complex adjustments, reducing equipment investment and improving production flexibility.
-
-
- Space Utilization
Compact design creates more value
High integration design maximizes floor space utilization, enabling higher production layouts in limited factory areas. Provides potential for expansion, upgrades, and workshop optimization.
-
-
- Intelligent Operation
One-click changeover improves utilization
Supports recipe management and parameter recall, allowing one-click switching for common products. Lowers the operation threshold, reduces human error, and makes production management easier and more efficient.
-
-
- Stable Operation
High-speed stability ensures continuous delivery
Optimized for continuous production, the machine maintains stable operation even at long-term high-speed performance, ensuring reliable output and consistent delivery for customers.
-
-
Industries
-
-
-
Granular
-
-
-
-
Mixed
-
Industries
Bag bottom opening/keep opening can be configured, the height can be adjusted automatically according to the bag size.
High speed zipper opening device is an optional and realize high-speed packaging even for zippered bags.
It can be matched with laser, inkjet, heat transfer and other types of coding, and can be matched with quick adjusted mounting brackets.
It can be compatible with multihead weigher, linear weigher and other weighing equipment. It can be quickly docked, easily disassembled and cleaned.
Industries
The machine reduce redundant plane and avoids exposed bolts and gas pipes, which is easier to clean.
The continuous following hopper system increases the filling time by more than 4 times! The product can achieve higher speed even on a high FAR.
The level and height of the packaging bag can be detected online, so that the quality and appearance of the final product can be more guaranteed.
The bag feeding system controlled by multiple servo motors can realize high-speed production regardless of packaging type and material.
Bag-Bottom vibrating makes the filling process more smooth and the materials more even.
The continuous following hopper system increases the filling time by more than 4 times! The product can achieve higher speed even on a high FAR.
Detailed parameters
-
- Min. Pouch Size(Width x Height x Bottom)(mm)
- 65 x 70
-
- Max. Pouch Size(Width x Height x Bottom)(mm)
- 120 X 210
-
- Speed Range(pouch/min.)
- 320-400（Actual speed depends on the properties of specific filling materials.）
-
- Voltage
- AC380V
-
- Frequency(Hertz)
- 50HZ/60HZ
-
- Power
- 15KW
-
- Air Consumption (m³/min)
- 0.6-1.2m³/min
-
- Noise Index
- <80dB
-
- Machine Dimension(L x W x H) (mm)
- 5400x1800x1950mm
-
- Net Weight (kg)
- 5000
