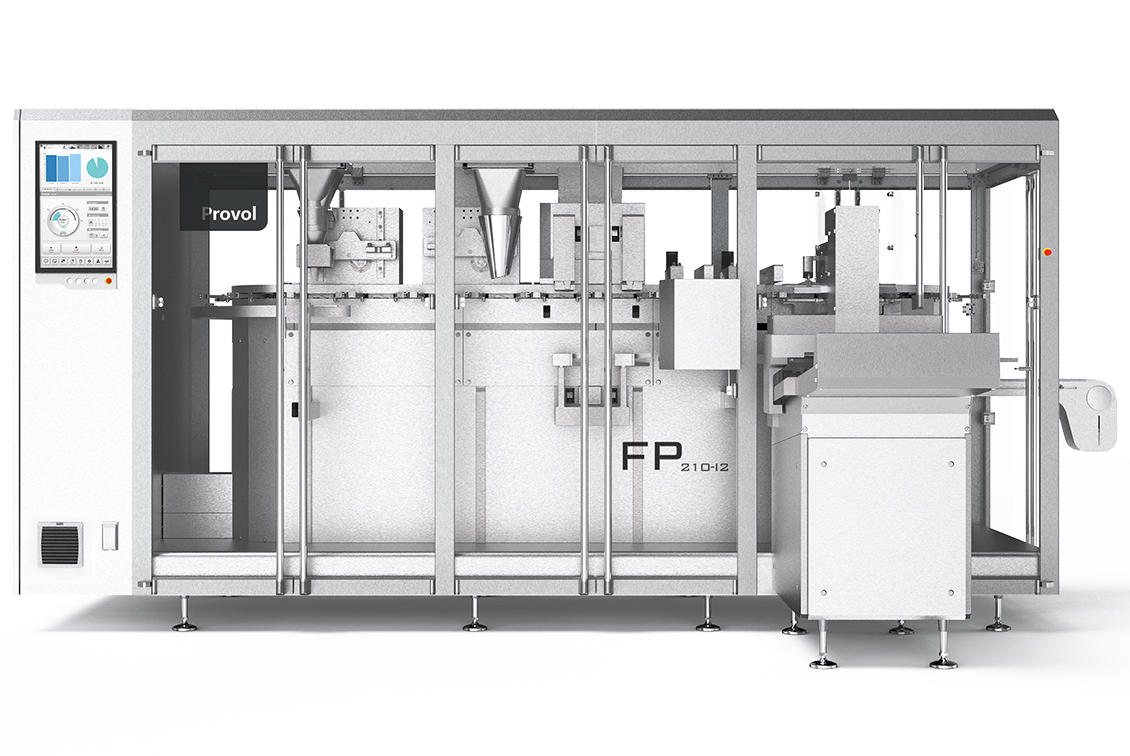

Flexible Packaging Machine
-
FP-210-I2
Small Footprint, High Output
- Small length footprint is only 4m.
- Easy to operate - 21-inch industrial HMI, quick changeover by one-key on HMI.
- High-quality features of Provol standards.
- For the mass production of powders and liquids in a wide range of industry sectors, fast and reliable HFFS solutions for sachet packaging are essential. An increase in speed cannot be accompanied by a decrease in precision and flexibility. A modern, high-speed HFFS solution with a choice of sachet types with high precision will provide a rapid return on investment.
-
Characteristics
- Easy to operate, freindly interface
- Stable operation for a long time
- Free changeover for multiple SKU
- Flexible space performance
- Strict control of product quality
- Food grade hygiene standards
- Easy to operate
Easy to operate, freindly interface
Multiple detection feedback functions such as bag loading, bag loading height and coding detection can more accurately monitor the OEE efficiency of the overall machine, and display it on the HMI in real time. The HMI adopts a new UI design concept, which can support multi-users browsing, display statistical production data and machine operating status. -
-
- Production Efficiency
Stable operation for a long time

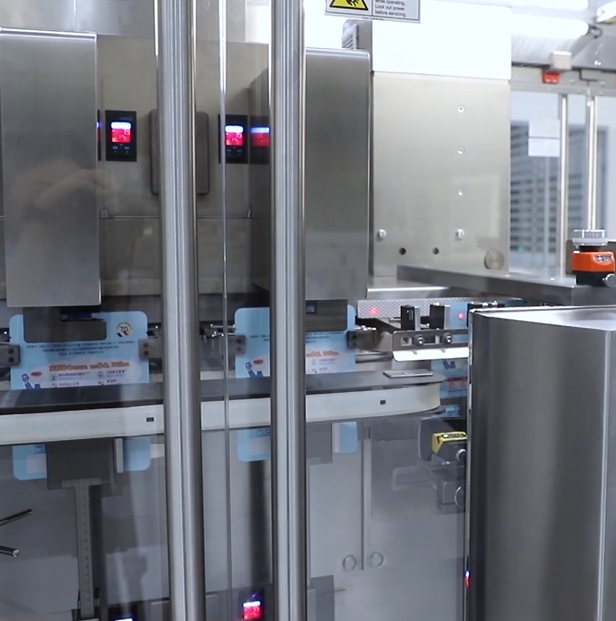

Full servo drive control, the movement of each axis is started on demand, which greatly reduces the running power of the whole machine. The touch screen can also display the running status in real time, monitor energy consumption, voltage, current, air pressure flow, etc., to achieve precise control. -
-
- Quick changeover
Free changeover for multiple SKU

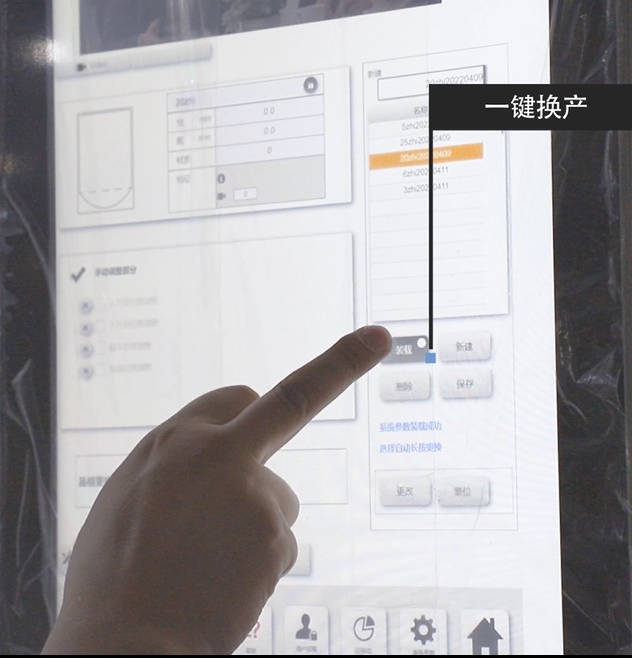

Recipes design for production changeover, all of the parts for each changeover are clear at a glance, and changeover time is recorded in real time, which provides any possibility to continuously optimize the efficiency of production changeover.
All of the changeover parts adopt the quick disassembly structure, which can custome design all of the neccessary accessories according to the customers various SKU production. -
-
- Space usage
Flexible space performance
Rotary cycle chain structure, using rotating space for filling the products -
-
- Product quality
Strict control of product quality
The online weighing module, bag loading detection, bag height detection, coding detection and other sets of detection will accurately monitor OEE of the whole machine in real time, and display the data on HMI, which accurately control product quality. -
-
- Health and Safety
Food grade hygiene standards

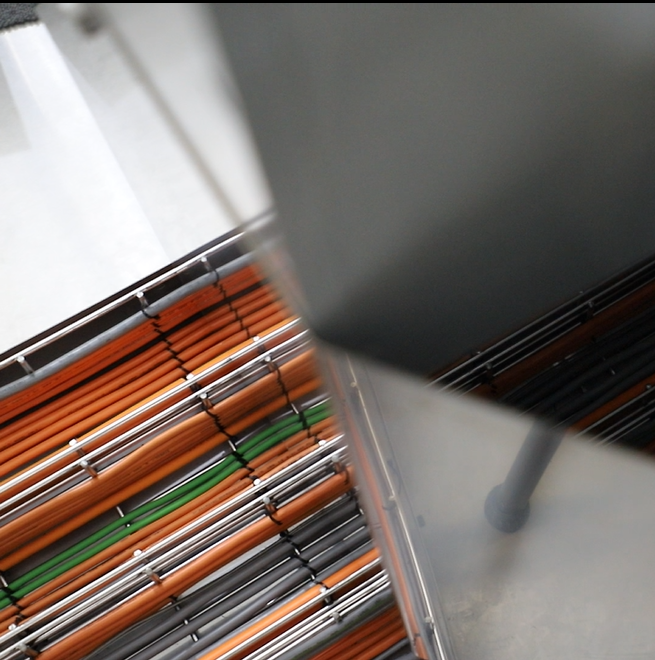

The F series packaging machine is designed according to Provol hygienic design standard. High sealing feature of the machine driving part, no hygienic dead corner for the exposed mechanical assemblies, and the air tube wiring is hidden into the structure, that is easy to clean.
For some parts that need to be removed to clean and replace such as the teflon cloth of sealing jaws, conveyor belt, etc., which are quickly cleaned and no tools needed. -
-
Industries
-
-
-
Granular
-
-
-
-
Liquid
-
-
-
-
Powdery
-
-
-
-
Mixed
-
Industries
Serve bag vibrating function makes the filling process more smooth and the materials more even.
The hopper can support at four corner of the bag.
It can be compatible with multihead weigher, linear weigher and other weighing equipment. It can be quickly docked, easily disassembled and cleaned.
It can be matched with laser, inkjet, heat transfer and other types of coding, and can be matched with rapidly adjusted mounting brackets.
The bag suppling system controlled by multiple servo motors can realize high-speed production regardless of packaging type and material.
Industries
High speed zipper opening device is an optional and realize high-speed packaging even for zippered bags.
Serve bag vibrating function makes the filling process more smooth and the materials more even.
The vacuum system is equipped with a filtering device, which can be quickly cleaned and replaced, so that the equipment maintenance is simpler.
It can be matched with laser, inkjet, heat transfer and other types of coding, and can be matched with rapidly adjusted mounting brackets.
The bag suppling system controlled by multiple servo motors can realize high-speed production regardless of packaging type and material.
Industries
The machine reduce redundant plane and avoids exposed bolts and gas pipes, which is easier to clean.
The machine reseves mulitiple sealing stations ,ensures the quality & the appearance.
Rejection position is contained and ensure that every product out of the machine is a controllable qualified product.
The vacuum system is equipped with a filtering device, which can be quickly cleaned and replaced, so that the equipment maintenance is simpler.
The level and height of the packaging bag can be detected online, so that the quality and appearance of the final product can be more guaranteed.
Industries
Serve bag vibrating function makes the filling process more smooth and the materials more even.
The machine reseves mulitiple sealing stations ,ensures the quality & the appearance.
The continuous following hopper system increases the filling time by more than 4 times! The product can achieve higher speed even on a high FAR.
The vacuum system is equipped with a filtering device, which can be quickly cleaned and replaced, so that the equipment maintenance is simpler.
The level and height of the packaging bag can be detected online, so that the quality and appearance of the final product can be more guaranteed.

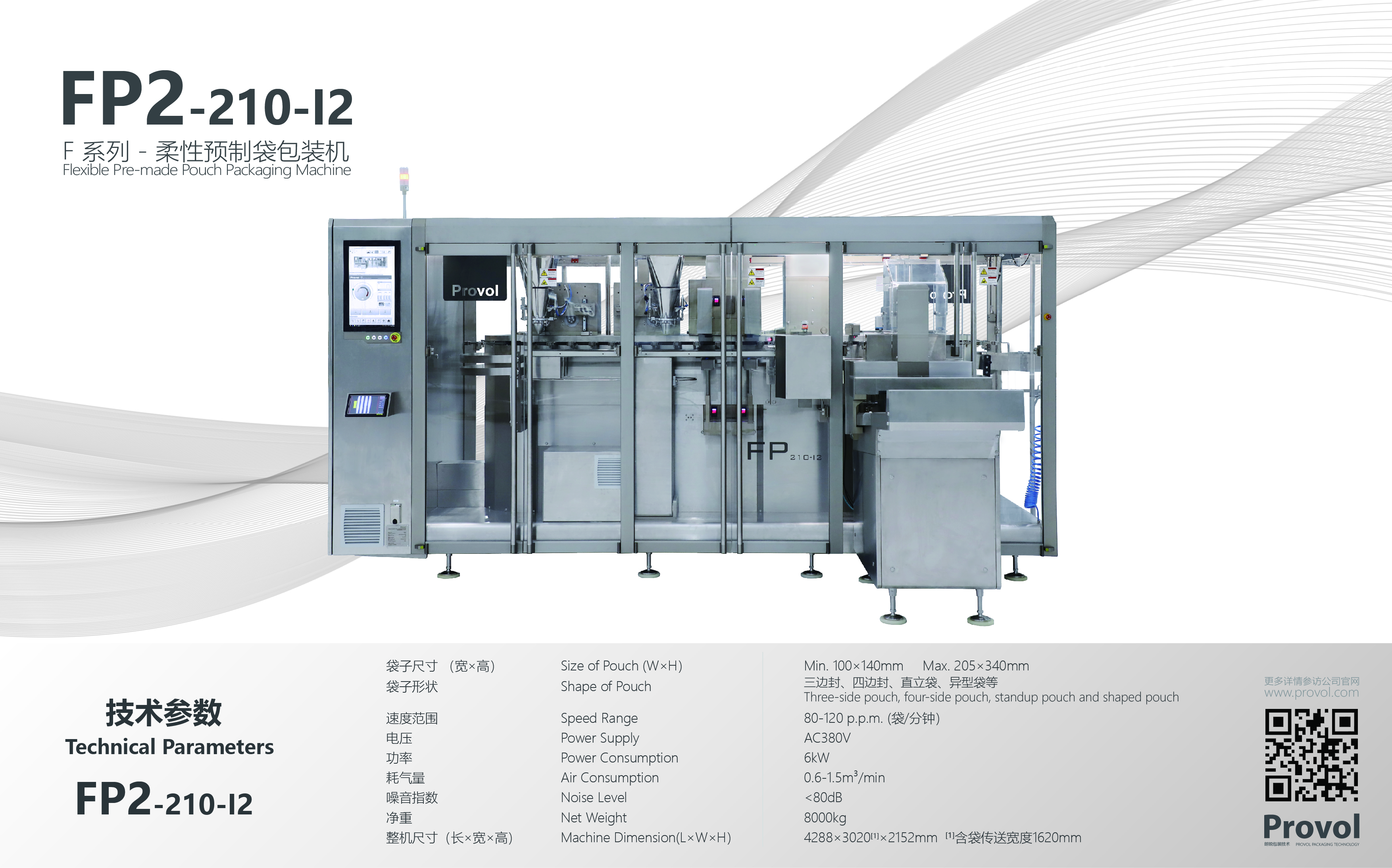

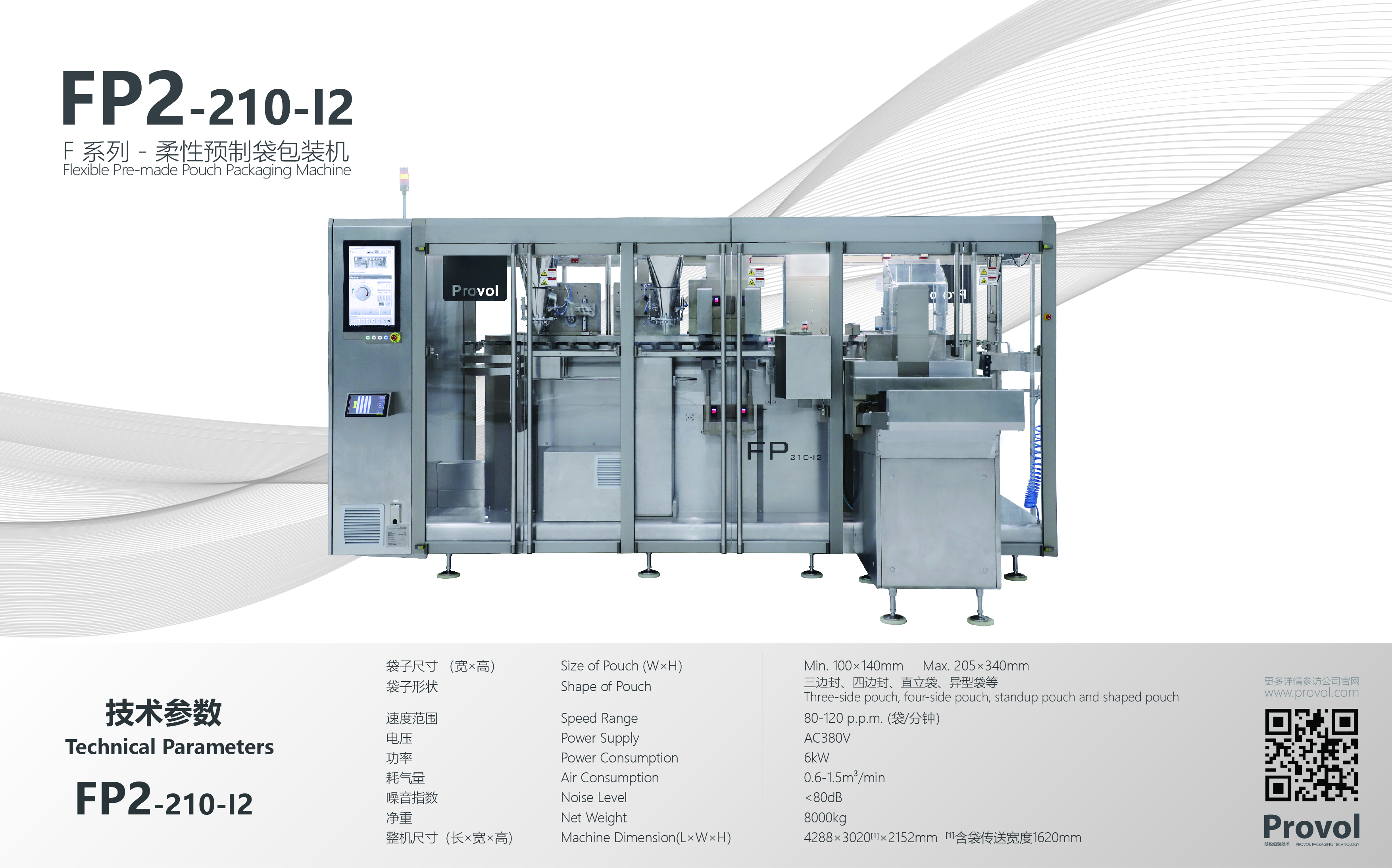

Detailed parameters
-
- Filling Materials
- Solid, Fluid, Solid+Fluid, Powder
-
- Min. Pouch Size(Width x Height x Bottom)(mm)
- 100 X 140 X (25 X 2)
-
- Max. Pouch Size(Width x Height x Bottom)(mm)
- 205 x 340 x (50 x 2)
-
- Speed Range(pouch/min.)
- 80-120 （Actual speed depends on the properties of specific filling materials.）
-
- Voltage
- AC380V
-
- Frequency(Hertz)
- 50HZ/60HZ
-
- Power
- 6kW
-
- Air Consumption(m³/min)
- 0.6-1.5
-
- Noise Index
- <80dB
-
- Machine Dimension(L x W x H)（mm）
- 4,288 X 1,400 X 2,152
-
- Machine Max Dimension(L x W x H)（mm）
- 4,380 X 3,020 X 2,150
